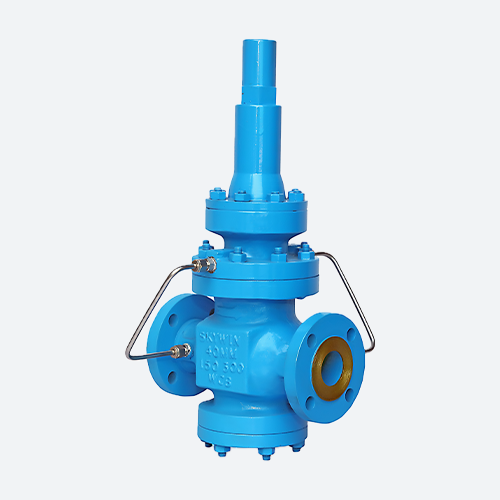

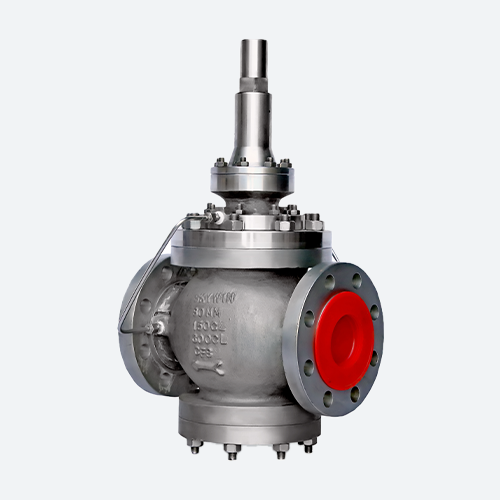

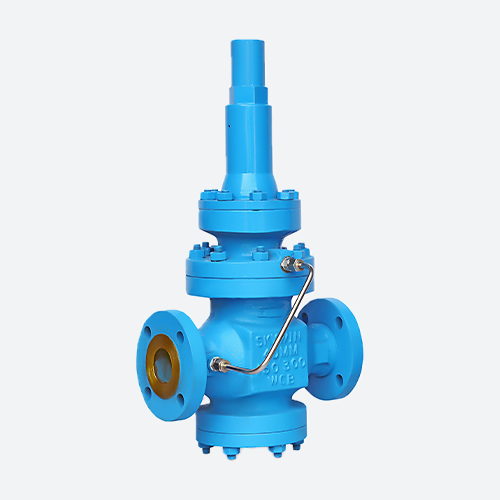

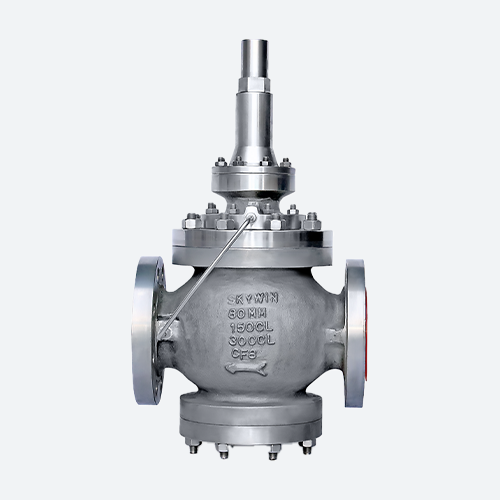

Automatic Control Valve (ASV-161)
-
TECHNICAL SPECIFICATIONS
| SIZE | 1/2” THRU 10” |
|---|---|
| RATING | 150# THRU 900# |
| MAX. INLET PRESSURE | 25 TO 1500 PSI-G |
| MAX. OUTLET PRESSURE | 0 TO 600 PSI-G |
| MAX. TEMPERATURE RANGE | -40 DEG C TO 450 DEG C |
| APPLICABLE MEDIA | STEAM,AIR, GAS, LIQUID |
| MATERIAL | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12,CF8, CF8M,CF3, CF3M,CF8C, CN7M, CD4MCu, HASTELLOY, INCONEL, DUPLEX STAINLESS STEEL |
-
FEATURES
| Single Seated | Closing With Inlet Pressure For Positive, Dead End, Shut-Off |
|---|---|
| Accuracy Of Regulation | Comaparable To Instrument Control With Full Flow For Equivalent Pipe : Comaparable To Instrument Control With Full Flow For Equivalent Pipe |
| New Type Piston With Teflon + Seal | For Tempareture Up To 500 Deg F. Give Continuous Wiping Action Keeping Liner Clean, Improving Operating Reliablity And Reducing Maintenance. Piston Rings Can Be Furnished For Temperature Over 500 Deg F. |
| Fully Guided Main Valve | Prevent Rubbing Or Binding Of Internal Parts |
| Gradual Opening Ported Main Valve | In Sizes 2.1/2” And Larger For Improved Throttling Control Under Low Flow Conditions. |
| Sensitive Stainless Steel Diaphragm | Responds Instantly To Any Flow Change And Eliminates Stuffing Boxis And Bellows Seals. Full Travel Less Than Its Own Thikness Stress To A Minimum. |
| Renewable Interchangeble Parts | Machine To Close Tolerance: Complet Overhaul Without Machinig Or Removing Valve Body From The Line. |
