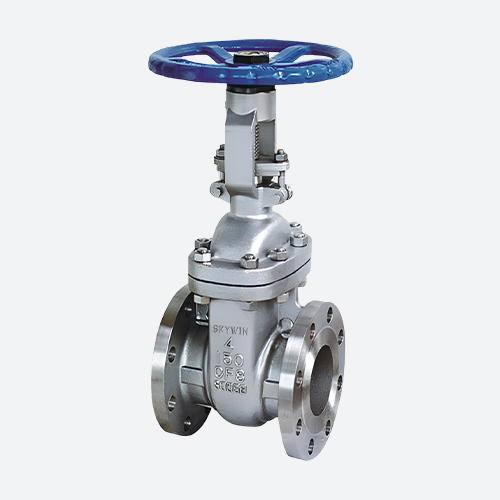

| DESIGN FEATURES | |
|---|---|
| Material | WCB / WC6 / LCB / CF8 / CF8M / CF3 / CF3M etc. |
| Pressure Rating | 150# / 300# / 600# / 900# / 1500# / 2500# |
| Design Standard | API 600 / BS 1414 / ASME B16.34 |
| Inspection & Test Standard | API 598 / BS EN 12266-I |
| End Connection | Flanged Ends / Butt Weld Ends / RTJ |

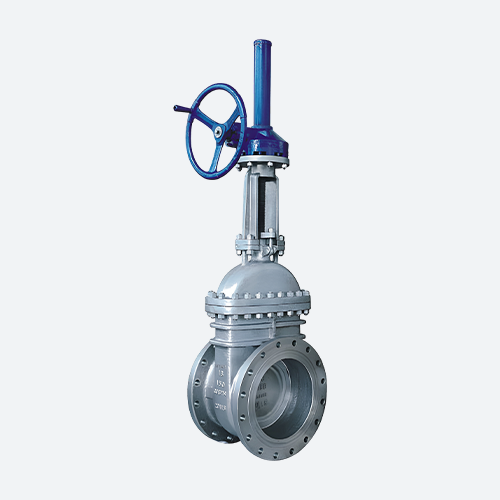

| Operation | Hand Wheel / Gear / Actuated (Pneumatic/Electric) |
| Size Range | 2" to 24" |
| Trims Material | As per requirement |
| Optional | By pass arrangement / Floor stand / Extended stem |
| PARAMETERS | Class | 2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Face to Face (L) | 150# | 178 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| 300# | 216 | 283 | 305 | 381 | 403 | 419 | 457 | 403 | 762 | 403 | 914 | 990 | 1143 | |
| 600# | 292 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | |
| 900# | 368 | 381 | 457 | 559 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1029 | 1321 | - | |
| 1500# | 368 | 470 | 546 | 673 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | - | |
| Height (H)(Approx.) | 150# | 375 | 470 | 570 | 705 | 790 | 990 | 1200 | 1400 | 1500 | 1740 | 1950 | 2150 | 2565 |
| 300# | 400 | 500 | 600 | 715 | 850 | 1025 | 1260 | 1450 | 1580 | 1790 | 2100 | 2250 | 2654 | |
| 600# | 400 | 540 | 635 | 730 | 875 | 1040 | 1280 | 1470 | 1580 | 1905 | 2010 | 2275 | 3150 | |
| 900# | 445 | 595 | 750 | 765 | 865 | 1225 | 1450 | 1625 | 1680 | 1925 | 2025 | 2310 | - | |
| 1500# | 475 | 600 | 775 | 785 | 925 | 1250 | 1525 | 1725 | 1750 | 1950 | 2125 | 2310 | - | |
| Hand Wheel Dia. (ØW) | 150# | 475 | 600 | 775 | 785 | 925 | 1250 | 1525 | 1725 | 1750 | 1950 | 2125 | 2310 | - |
| 300# | 200 | 230 | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 600 | 680 | 680 | 762 | |
| 600# | 200 | 250 | 305 | 400 | 450 | 450 | 500 | 600 | 600 | 760 | 760 | 760 | 762 | |
| 900# | 300 | 300 | 400 | 450 | 300* | 350* | 400* | 400* | 450* | 500* | 500* | 550* | - | |
| 1500# | 300 | 300* | 300* | 300* | 350* | 350* | 400* | 400* | 450* | 500* | 550* | 550* | - | |
| Weight (Kgs)(Approx.) | 150# | 21 | 35 | 52 | 35 | 85 | 135 | 205 | 300 | 400 | 520 | 685 | 900 | 1040 |
| 300# | 25 | 50 | 75 | 50 | 155 | 230 | 350 | 490 | 745 | 950 | 1300 | 1640 | 2460 | |
| 600# | 40 | 40 | 165 | 65 | 250 | 410 | 650 | 1100 | 1600 | 1950 | 2070 | 2150 | 3620 | |
| 900# | 85 | 125 | 180 | 260 | 310 | 525 | 975 | 1450 | 1900 | 2555 | 3275 | 3900 | - | |
| 1500# | 110 | 145 | 220 | 320 | 403 | 710 | 1350 | 2300 | 3100 | 3575 | 4585 | 5000 | - |
| No. | Part Name | ASTM Specification (Specs - Grades/Types) |
|---|---|---|
| 1 | Body | WCB / WC6 / WC9 / CF8 / CF8M / CF3 / CF3M / LCB |
| 2 | Bonnet | WCB / WC6 / WC9 / CF8 / CF8M / CF3 / CF3M / LCB |
| 3 | Wedge | WCB / WC6 / WC9 / CF8 / CF8M / CF3 / CF3M / LCB |
| 4 | Stem | SS 410 / SS 304 / SS 304L / SS 316L |
| 5 | Seat Ring | SS 410 / SS 304 / SS 304L / SS 316L |
| 6 | Back Seat Bush | SS 410 / SS 304 / SS 304L / SS 316L |
| 7 | Gland | SS 410 / SS 304 / SS 304L / SS 316L |
| 8 | Gland Flange | WCB / WC6 / WC9 / CF8 / CF8M / CF3 / CF3M / LCB |
| 9 | Stem Nut | A439 Gr. D2 / AI Bronze |
| 10 | Lock Nut | Carbon Steel / SS 304 |
| 11 | Gland Packing | Graphoil / Graphite Asbestos / PTFE |
| 12 | Bonnet Gasket | Spiral Wound SS 304 with Graphoil or Asbestos / Octagonal Ring |
| 13 | Gland Eye Bolt & Nut | Carbon Steel / Stainless Steel |
| 14 | Bonnet Stud | B7 / B7M / B8M / B8 / L7 |
| 15 | Bonnet Nut | 2H / 8 / 8M / 7 |
| 16 | Grub Screw | Carbon Steel |
| 17 | Hand Wheel | Carbon Steel |
| 18 | Hand Wheel Nut | Carbon Steel |
