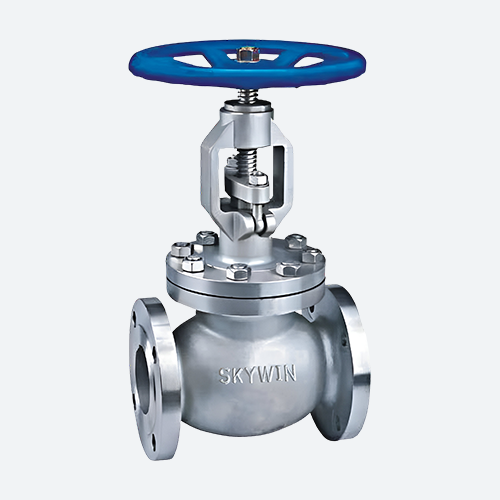

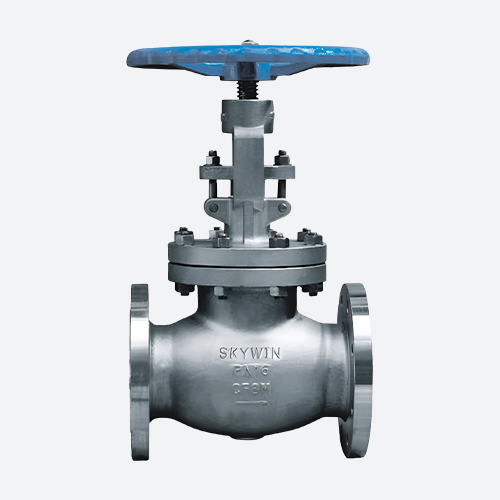

Globe Valve

  • TECHNICAL SPECIFICATIONS
Material WCB / WC6 / LCB / CF8 / CF8M / CF3 / CF3M etc.
Pressure Rating 150# / 300# / 600# / 900# / 1500# / 2500#
Design Standard BS 1873 / ASME B16.34
Inspection & Test Standard API 598 / BS EN 12266-I
End Connection Flanged Ends / Butt Weld Ends / RTJ
Operation Hand Wheel / Gear / Actuated (Pneumatic / Electric)
Size Range 2" to 20"
Trims Material As per requirement
Optional By-pass arrangement / Floor stand / Extended stem
Get Quote
  • FEATURES
PARAMETERS Class / Size 2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20"
Face to Face (L) 150# 203 241 292 356 406 495 622 699 787 914 978
300# 267 318 355 400 444 558 622 711 762 838 914 990
600# 292 355 431 505 558 660 787 838 889 991 1092 1194
900# 368 381 457 559 610 737 838 965 1029 1130 1219 1321
1500# 368 470 546 673 705 832 991 1130 1257 1384 1537 1664
Height (H) Approx. 150# 330 418 540 585 725 825 914 1030 1143 1237 1337 1564
300# 350 485 520 605 725 920 1140 1150 1230 1320 1430 1570
600# 420 550 590 620 750 950 1140 1330 1350 1430 1480 1700
900# 495 600 655 670 780 1050 1300 1350 1620 1700 1760 1880
1500# 550 625 750 810 925 1225 1450 1500 1620 1710 1700 1780
Hand Wheel Dia. (ØW) 150# 200 250 300 350 400 500 600 700* 700* 700* 700* 700*
300# 200 300 350 400 500 600 700* 700* 700* 700* 700* 700*
600# 250 300 350 500 500 600 600 700* 700* 700* 700* 700*
900# 300 300 350 500 500 600 700* 700* 700* 700* 700* 700*
1500# 300 400 450 600 600* 450* 500* 600* 600* 600* 600* 600*
Weight (Kgs) Approx. 150# 23 40 65 95 115 180 280 365 600 750 860 975
600# 40 72 132 210 245 460 700 850 1100 1600 1955 2330
900# 65 125 180 285 370 650 1050 1350 1700 2355 2975 3150
1500# 116 145 210 395 475 925 1365 1950 - - - -
