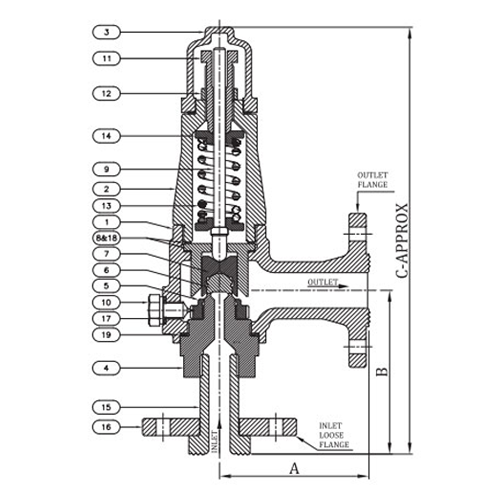

| Valve Size Inlet x Outlet | A ±3.0 | B ±3.0 | C ±3.0 | D ±3.0 | (Approx) Weight (kg) |
|---|---|---|---|---|---|
| 25 x 50 | 115 | 105 | 430 | 460 | 20 |
| 40 x 50 | 120 | 124 | 460 | 490 | 23 |
| 40 x 80 | 124 | 130 | 530 | 490 | 30 |
| 50 x 80 | 124 | 133 | 540 | 575 | 36 |
| 80 x 100 | 162 | 155 | 590 | 620 | 50 |
| 100 x 150 | 229 | 181 | 830 | 900 | 149 |
| 150 x 200 | 240 | 240 | 990 | 1050 | 210 |
| 200 x 250 | 280 | 276 | 1400 | 1470 | 325 |
| 250 x 300 | 395 | 385 | 1600 | 1670 | 950 |
| Part Name | Type of Material |
|---|---|
| Body | ASTM A 216 GR. WCB, ASTM A 351 GR. CF8/CF8M/CF3/CF3M |
| Cap (Open) Cap (Close) | ASTM A 216 GR. WCB, ASTM A 351 GR. CF8/CF8M/CF3/CF3M |
| Nozzle | ASTM A 351 CA15/CF8/CF8M /CF3 /CF3M |
| Disc | SS410/304/304L/316/316 |
| Reaction Hood | ASTM A 351 CA15/CF8/CF8M /CF3 /CF3M |
| Disc Holder | ASTM A 351 CA15/CF8/CF8M /CF3 /CF3M |
| Guide | ASTM A 351 CA15/CF8/CF8M /CF3 /CF3M |
| Stem | SS 410/304/304L/316/316L |
| Lock Screw | SS 410/304/304L/316/316L |
| Lock Screw | SS 410/304/304L/316/316L |
| Adjusting Screw | SS 410/304/304L/316/316L |
| Adjusting Screw Nut | SS 410/304/304L/316/316L |
| Setting Spring | SPRING STEEL/STAINLESS STEEL/ALLOY STEEL |
| Upper Spring Washer | M.S./SS 410/304/304L/316/316L |
| Lower Spring Washer | M.S./SS 410/304/304L/316/316L |
| Studs | B7/B8/B8M/L7 |
| Nuts | 2H/8/8M/7 |
| Thrust Bearing | AS PER STANDARD MFG. |
| Gasket (Body) | CAF/GRAPHITE/PTFE |
| Gasket (Nozzle) | CAF/GRAPHITE/PTFE |
| Gasket (Lock Screw) | CAF/GRAPHITE/PTFE |
| Gasket (Cap) | CAF/GRAPHITE/PTFE |
| Lever | ASTM A 216 GR. WCB, A 351 CF8, CF8M, SG IRON |
| Fork | ASTM A 216 GR. WCB, A 351 CF8, CF8M, SG IRON |
| Lever & Fork Pin | M.S./SS304/316 |
| Stem Nut | M.S./SS304/316 |
| Bellows (Your Req.) | SS304/304L/316/316L/INCONEL |
Replaceable all parts & easy maintenance.
Seat has metal & soft seating arrangement.
Pressure limits as per your requirements.
Hard face for high pressure & high temperature.
Material of construction make in quality casting also as per your requirements.
Trims make by certified bar stock (forged) and quality casting also as per your requirements.
High quality, well design well performance certified spring.
Size 25mm x 50mm (1” x 2”) to 250mm x 350mm (10” x 14”) also as per your requirements.
Design as per standards API-520/API-526/API-527.
Also applicable standard is ASME BPVC section VII division I.
Standards as per ASME B 16.5& ASME B 16.34.
Pressure rating 150, 300, 600, 900,1500, 2500, Table-H & Table-E class.
