Being one of the quality pressure relief valve makers it is our utmost responsibility to have in depth knowledge of valve designed. We also know how is the pressure safety valve (PSV) designed? With understanding of each aspect of valve design with significant knowledge of How is the Pressure safety valve (PSV) designed? Here we also like to share same with you gaining more clarity and information for batter selection and usage. Our expertise of advance design implementation in valve making contributed well to our products users. We 'Skywin' thus stand tall among pressure safety valve manufacturer in India.
Above topic is useful for instrument engineers, technicians, process managers and purchaser of organisations being user. It is also useful for professionals related to this field.
The term safety is unattachable with these valves itself reflects that the criticality of working and performance of this valves. Construction of these valves thus is the vital part on which performance rely upon. In absence of meaningful and most compatible design these valves not constructed well.
In pressurized system handling various types of fluids, user expectations from valve manufacturer are holding various features. They are like valve should be robust yet economic, compact yet easily serviceable. Also pertain long working life against adversity of sudden and uncertain instances of pressure rise and variation. Combating Extreme Stress and strain due to temperature, pressure, and other forces with retaining safety due to system pressure controlling. Best design of valve can offer all these features at a time. On going researches and developmental activities keeps valve maker thriving for improvement through advance technology and latest design. However, the basic conceptual mechanism and design remain useful for long time with sole of concept.
PSVs Ultimate aim is to safeguard system equipment's and surrounding from higher pressure. PSV opens at instance when pressure raise above predetermined value for and get close when pressure drops within safe limits.
Universally accepted general design of PSV is with spring loaded type. Where spring generates pressure and put valve close until pressure within system not get rise above spring pressure..
Above basic design can be incorporated with different vent arrangements.
It is to be understood that set force value of PSV is particular value of pressure when valve get open. The set pressure value get decides on max allowable working pressure of related system where valve used with.
Calculation for Size or capacity of Pressure safety valve depends mainly upon three factors.

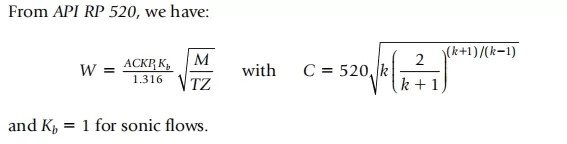

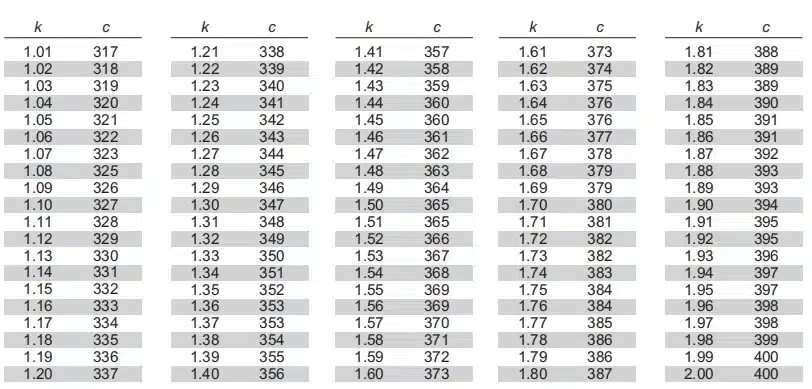

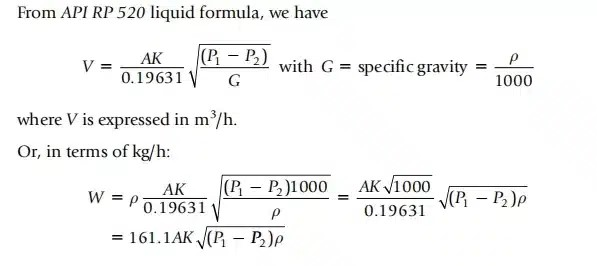

For instance, size design to be calculated adhering API (American petroleum Institutes) can be as below.
Indices 1 stands for Inlet and 2 stands for outlet.
Valve Material for spare construction: It is not difficult but obvious to understand the significance of material selection for PSVs as per above. The major factors are consideration of fluid to be handle, temperature during processes, environment, and surroundings. Material selection can be individually for spares of valve
Most usual material for selections includes Stainless steel, Alloys, and carbon steel in view to cope with adversities. It is of High Temperature and corrosive environmental situation.
Overpressure is the rise in pressure beyond set valve pressure when PSV gets fully open.
It is the decrease in pressure needed for reclosing valve once it got opened called blowdown pressure.
Both above get determined in percentage value with respect of set pressure.
Pressure safety valve uses for regular purpose: this type of PSVs pompous through back pressure of system. It is preferred for comparatively less fluctuating back pressure systems.
Balanced Pressure safety valve: It is designed such accommodating with bellow or piston to overcome back pressure effect and keeping at minimal.
Pilot-operated pressure relief valve: As per the renowned Pilot-operated pressure relief valve manufacturer in India system pressure is main operator for this valve. These valves are designed in a way where system pressure itself acts through pilot, balancing valve open close operations.
Piston operated pilot safety valve are mainly made by pressure relief valve manufacturer in India.
Due to business practice generated through demands major relief valve manufacturers in India make PSVs adhering international design standards. They are ASME -American Society of Mechanical Engineers, ISO- International Organisation for standardization and API -American Petroleum Institute mostly.
